Hydraulic Valves: The Complete Analysis

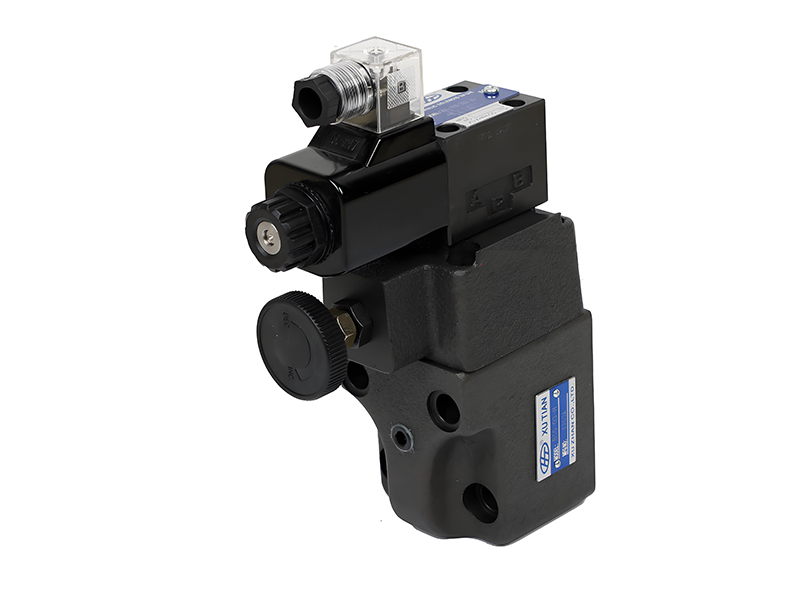

The Definitive Guide to Hydraulic Valves

Exploring the technology that powers industries worldwide through precision engineering and fluid power.

Industry expert Hydraulic engineer Valve specialist

Trusted by 500+ industry professionals

A RICH HERITAGE

Hydraulic technology is over 200 years old

The story of Hydraulic valves begins long before the industrial revolution, with early concepts of the hydraulic valve dating back to ancient civilizations. However, the modern foundation of hydraulic technology as we know it today can be traced to the early 19th century, making this remarkable engineering discipline over 200 years old.

In 1795, Joseph Bramah patented the first hydraulic press, laying the groundwork for modern hydraulic systems. Bramah's invention utilized Pascal's principle, discovered by Blaise Pascal in the 17th century, which states that pressure applied to an enclosed fluid is transmitted undiminished to all portions of the fluid and the walls of its container. This principle remains the cornerstone of all hydraulic systems, including the sophisticated Hydraulic valves used today.

Throughout the 19th century, hydraulic technology slowly evolved, finding applications in various industrial settings. The development of more reliable sealing materials was crucial for advancing Hydraulic valves, as early systems suffered from significant leakage issues. By the late 1800s, hydraulic systems were being used in applications ranging from factory machinery to canal locks and even early elevators.

The true revolution for Hydraulic valves came during the 20th century, particularly with the advent of World War II. Military applications demanded more precise control systems, leading to rapid advancements in valve design and hydraulic technology. Post-war, these innovations found their way into civilian applications, transforming industries such as manufacturing, construction, and transportation.

Today, after more than two centuries of development, Hydraulic valves represent the pinnacle of fluid power engineering. Modern valves incorporate advanced materials, computer-aided design, and precision manufacturing techniques that would have been unimaginable to the early pioneers of hydraulic technology. Yet, despite these advancements, the fundamental principles governing hydraulic systems remain true to those established over 200 years ago, a testament to the enduring genius of early hydraulic innovators.

Historical hydraulic machinery

Key Milestones in Hydraulic Valve Development

  • 1
    1795: Joseph Bramah patents the hydraulic press
  • 2
    1850s: First practical hydraulic valves for industrial applications
  • 3
    1920s: Development of directional control valves for early machinery
  • 4
    1940s: WWII accelerates development of precision hydraulic valves
  • 5
    1970s: Introduction of electro-hydraulic proportional valves
  • 6
    2000s: Smart hydraulic valves with integrated sensors and electronics
TECHNOLOGICAL DYNAMICS

The love-hate relationship between hydraulics and electricity

Two powerful forces in industrial automation that compete, collaborate, and continuously push each other forward

Electrical Advantages

  • Easier to control with digital systems
  • Lower installation costs for simple applications
  • No risk of fluid leakage or contamination
  • Better suited for precise, low-force applications
  • Easier integration with IoT and smart systems

Hydraulic Advantages

  • Superior power-to-weight ratio for heavy loads
  • More durable in harsh environments
  • Better for continuous high-force applications
  • Natural overload protection through pressure relief
  • Consistent performance across wide temperature ranges

The Perfect Partnership

  • Electro-hydraulic systems combine best of both
  • Electric controls with hydraulic power
  • Precision meets strength in modern applications
  • Smart Hydraulic valves with electronic interfaces
  • Optimized efficiency through intelligent integration

The Evolving Relationship

For much of the 20th century, hydraulics and electronics existed in separate domains, each dominating their respective applications. Hydraulics ruled in heavy industry, construction, and manufacturing where raw power was required—yet even here, the need for limited precision control (e.g., adjusting the speed of hydraulic presses) led to the adoption of hydraulic solenoid valve (a part that translates electronic signals into hydraulic control actions). Meanwhile, electronics controlled precision applications and information processing, with little direct overlap in hydraulics’ core domains beyond the supporting role of hydraulic solenoid valves.

This separation created a competitive dynamic, with each technology vying for market share in applications where both could potentially be used. Proponents of each system would highlight their advantages while downplaying their limitations, creating what could be described as a "love-hate relationship" between the two technologies.

However, the last few decades have seen a dramatic shift toward integration rather than competition. Modern industrial systems increasingly leverage the strengths of both technologies, using electronic controls to manage hydraulic power. This has led to the development of sophisticated Hydraulic valves that incorporate electronic sensors and actuators, creating precise, powerful, and efficient systems that would be impossible with either technology alone.

Today, the relationship between hydraulics and electronics is more collaborative than competitive. Electronics provide the "brains" through precise control systems, while hydraulics deliver the "brawn" through powerful actuation. This partnership has revolutionized industries from manufacturing to aerospace, enabling capabilities that were once unimaginable. The Hydraulic valves at the heart of these systems represent the perfect fusion of these two technological powerhouses.

Electro-hydraulic control system

Performance Comparison

FUNDAMENTAL PRINCIPLES

The essence of hydraulic valves

Core Functions

  • Direction Control

    Managing fluid flow paths

  • Flow Regulation

    Controlling flow rates

  • Pressure Control

    Maintaining system pressure

  • Safety Protection

    Preventing system overload

Cutaway view of hydraulic valve

Internal Structure

Precision engineering at work

Controlling the Flow of Power

At their core, Hydraulic valves are sophisticated control devices that regulate the flow, pressure, and direction of hydraulic fluid within a system. Their essence lies in their ability to manage the immense power carried by pressurized fluids with precision and reliability— a capability exemplified by (a type that uses electrical signals to proportionally adjust fluid parameters, rather than just switching flow on or off). Acting as the "traffic controllers" of hydraulic systems, hydraulic valves rely on variants like proportional valves to handle scenarios requiring fine control (e.g., precise positioning of hydraulic actuators in industrial robots), ensuring the system’s power is matched to dynamic operational needs.

The fundamental principle behind all Hydraulic valves is relatively simple: by opening, closing, or partially obstructing passageways within the valve, they control how hydraulic fluid moves through the system. However, the engineering required to achieve this with the necessary precision, durability, and efficiency is anything but simple.

The Essence Explained

To truly understand the essence of Hydraulic valves, we must recognize them as the interface between mechanical action and fluid power. They translate control inputs—whether manual, mechanical, or electrical—into precise adjustments of fluid flow, pressure, and direction.

Energy Conversion

Hydraulic valves facilitate the conversion of energy from one form to another, allowing pressurized fluid energy to be transformed into mechanical motion. This energy conversion process is highly efficient, with modern valves minimizing energy losses through advanced design and materials.

Precision Control

The essence of modern Hydraulic valves lies in their precision. Even the smallest valves can control massive amounts of power with incredible accuracy, allowing for the fine-tuned movements required in applications ranging from manufacturing robots to surgical equipment.

System Integration

Hydraulic valves serve as the integration points within hydraulic systems, connecting pumps, actuators, reservoirs, and other components into a cohesive whole. They ensure that each part of the system receives the right amount of fluid at the right pressure and time.

Feedback Mechanisms

Advanced Hydraulic valves incorporate feedback mechanisms that monitor system conditions and adjust their operation accordingly. This creates a closed-loop control system that can maintain precise performance even as external conditions change.

Materials and Design: The Physical Essence

The essence of Hydraulic valves is also embodied in their physical construction. These components must withstand extreme pressures—often exceeding 3000 psi—while maintaining precise tolerances measured in thousandths of an inch. This demanding combination requires carefully selected materials and sophisticated manufacturing processes.

High-strength alloys, hardened steels, and advanced polymers are commonly used in valve construction, each selected for specific properties such as wear resistance, corrosion resistance, or low friction. The internal surfaces of Hydraulic valves are often precision ground or lapped to achieve mirror-like finishes, minimizing fluid turbulence and pressure losses.

The design of Hydraulic valves must balance multiple factors, including flow capacity, pressure drop, response time, and durability. Computational fluid dynamics (CFD) simulations are now routinely used to optimize valve designs, ensuring that fluid flows through the valve with minimal turbulence and energy loss while providing the necessary control characteristics.

Ultimately, the essence of Hydraulic valves lies in their ability to reliably and precisely control the powerful forces of hydraulic systems. They are the critical components that transform raw hydraulic power into the controlled motion that drives modern industry, making them indispensable elements of countless machines and systems that shape our world.

PRECISION MECHANICS

Moving the valve spool

The critical mechanism that enables hydraulic control through precise movement

Hydraulic valve spool mechanism
Micron-Level Precision

The Heart of Valve Operation

At the core of most Hydraulic valves—such as hydraulic pressure relief valve—lies a seemingly simple yet extraordinarily precise component: the spool. Moving the valve spool is the fundamental action that controls fluid flow, making it the critical interface between the control mechanism and the hydraulic system.

The spool itself is a cylindrical component that fits precisely within the valve body, with lands (wider sections) and grooves (narrower sections) machined to exact tolerances. When the spool moves axially within the valve body, these lands and grooves align with different ports in the valve body, directing fluid flow in specific paths.

The precision required for moving the valve spool cannot be overstated. Even minute movements—often measured in thousandths of an inch—can significantly alter the performance of Hydraulic valves. This level of precision ensures that fluid flow is controlled with the accuracy needed for modern industrial applications.

Methods of Spool Actuation

Manual Actuation

The simplest method involves direct manual operation through levers, knobs, or handles. While straightforward, manual actuation of Hydraulic valves limits automation capabilities and is primarily used in simple systems or for emergency operation.

  • Simple, reliable design
  • Limited automation

Mechanical Actuation

This method uses cams, linkages, or other mechanical devices to move the spool in response to system conditions. Mechanical actuation is common in applications where Hydraulic valves need to respond automatically to physical changes in the system.

  • Self-contained operation
  • Limited adjustment range

Electrical Actuation

Solenoids or electric motors provide precise control over spool movement in modern Hydraulic valves. This enables integration with electronic control systems, offering programmable operation and remote control capabilities.

  • High precision and automation
  • Requires electrical power

The Physics of Spool Movement

Moving the valve spool in Hydraulic valves involves overcoming several physical forces, including friction, fluid pressure differentials, and spring forces. Engineers must carefully balance these forces to ensure smooth, responsive operation while maintaining the precision required for effective control.

Friction between the spool and valve body is minimized through precise machining and often through the use of specialized coatings or materials. This ensures that the spool moves freely with minimal resistance, allowing for quick response times and precise positioning.

Fluid pressure acting on the spool creates forces that can either assist or resist movement, depending on the valve design. These pressure forces must be carefully considered in the design of Hydraulic valves to ensure consistent performance across different operating conditions.

Many Hydraulic valves incorporate springs that return the spool to a neutral position when actuation force is removed. These springs must be carefully calibrated to provide sufficient force for reliable return without compromising the responsiveness of the valve during operation.

Spool Design Innovations

Modern spool designs for Hydraulic valves incorporate several innovations that enhance performance and reliability:

  • Notched Spools

    Precision notches in the spool create gradual flow transitions, reducing pressure spikes and improving control smoothness.

  • Pressure Compensation

    Specialized spool designs that maintain consistent flow rates regardless of pressure variations in the system.

  • Low-Friction Coatings

    Advanced surface treatments that reduce friction and wear, extending the service life of hydraulic valves.

  • Position Feedback

    Integrated sensors that provide precise spool position data for closed-loop control systems.

Challenges in Spool Movement

Despite advances in design, moving the valve spool in Hydraulic valves still presents several engineering challenges:

  • Contamination Sensitivity

    Even small particles in hydraulic fluid can interfere with spool movement, leading to valve malfunction.

  • Temperature Effects

    Thermal expansion can affect spool clearances, potentially impacting valve performance in extreme conditions.

  • Response Time vs. Precision

    Balancing the need for quick response with precise control remains a key challenge in valve design.

  • Energy Efficiency

    Moving the spool requires energy, and minimizing these energy losses is crucial for system efficiency.

QUALITY ASSURANCE

Testing is the soul of hydraulics

Ensuring reliability, performance, and safety through rigorous evaluation

In the world of hydraulics, testing is not merely a quality control step—it is the very soul of the discipline. The demanding environments and critical applications where Hydraulic valves—such as hydraulic check valve—are used necessitate rigorous testing to ensure reliability, performance, and safety. Without comprehensive testing, even the most sophisticated hydraulic systems would be unreliable and potentially dangerous.

The complexity of Hydraulic valves—with their precise tolerances, intricate flow paths, and dynamic operating characteristics—makes testing essential at every stage of development and production. From initial design validation to final production acceptance, testing provides the data needed to verify performance, identify potential issues, and optimize designs.

Testing serves as the ultimate validation of hydraulic principles in practice. While theoretical analysis and computer simulations play important roles in valve design, only physical testing can fully account for the complex interactions between fluid dynamics, material properties, and mechanical components that define the performance of Hydraulic valves.

Why Testing Matters

Safety Assurance

Prevents catastrophic failures in critical applications

Performance Validation

Ensures valves meet design specifications

Reliability Testing

Verifies long-term performance under stress

Design Optimization

Provides data to improve future designs

Hydraulic valve testing laboratory

Key Testing Parameters

  • Flow Coefficient (Cv)
  • Pressure Drop
  • Response Time
  • Leakage Rate
  • Pressure Rating
  • Fatigue Life
  • Temperature Range

Testing Methodologies for Hydraulic Valves

Functional Testing

This fundamental testing verifies that Hydraulic valves perform their basic functions correctly. It involves checking that the valve opens, closes, and modulates flow as intended under various operating conditions.

Performance Testing

Performance testing evaluates how well Hydraulic valves meet their specified performance criteria, including flow rates, pressure drops, response times, and control accuracy across their operating range.

Environmental Testing

This testing subjects Hydraulic valves to extreme conditions such as temperature variations, humidity, vibration, and contamination to ensure they maintain performance in harsh operating environments.

Durability Testing

Durability or life testing involves cycling Hydraulic valves through millions of operations under load to assess their long-term reliability and wear characteristics, ensuring they meet expected service life requirements.

The Future of Hydraulic Testing

Smart Testing Systems

The integration of IoT sensors into testing equipment allows for real-time data collection and analysis during the testing of Hydraulic valves. This enables more comprehensive monitoring of performance characteristics and faster identification of potential issues.

Digital Twin Technology

Digital replicas of Hydraulic valves allow for virtual testing that complements physical testing. By creating accurate simulations, engineers can predict performance, optimize designs, and reduce the need for extensive physical testing of every configuration.

AI-Powered Analysis

Artificial intelligence algorithms can analyze vast amounts of testing data from Hydraulic valves to identify patterns, predict failure modes, and optimize performance. This advanced analysis capability is transforming how test results are interpreted and applied.

As hydraulic technology continues to evolve, so too does the science of testing. These advancements ensure that modern Hydraulic valves meet the ever-increasing demands of industrial applications, providing the reliability, efficiency, and performance that modern engineering requires.

SYSTEM INTEGRATION

Various installation and connection forms

Each connection type offers unique advantages for different hydraulic system configurations

Choosing the Right Connection Method

The installation and connection methods for Hydraulic valves—like hydraulic spool valve—play a crucial role in system performance, maintenance, and overall efficiency. The choice of connection type depends on factors such as system pressure, flow rate, space constraints, maintenance requirements, and environmental conditions.

Each connection method offers distinct advantages and trade-offs. Some prioritize compactness, while others emphasize ease of maintenance or high-pressure capability. Understanding the characteristics of each connection type is essential for designing effective hydraulic systems that meet specific application requirements.

Modern hydraulic systems often utilize a combination of connection methods, leveraging the strengths of each type in different parts of the system. This hybrid approach allows engineers to optimize performance while addressing specific challenges in various sections of the hydraulic circuit.

Hydraulic valve manifold with various connections
Threaded hydraulic connections

Threaded Connections

The most common connection method for Hydraulic valves, utilizing standard or metric threads to secure connections between components.

Simple and cost-effective
Easy to install and repair
Bulkier than other methods
Potential for leakage if not properly sealed
Flanged hydraulic connections

Flanged Connections

Heavy-duty connections using flanges bolted together, providing high integrity for high-pressure Hydraulic valves and components.

Excellent for high-pressure applications
Very low leakage potential
More expensive and heavier
Require more space for installation
Cartridge valve installation

Cartridge Valves

Compact design where valve elements insert into machined cavities in manifolds, offering high integration for complex systems using Hydraulic valves.

Extremely compact design
Reduced leak points and pressure loss
Higher initial manifold cost
Limited field serviceability

Specialized Connection Methods

Quick-Disconnect Fittings

These specialized connections allow for rapid disconnection and reconnection of Hydraulic valves and components without fluid loss. They are particularly valuable in applications requiring frequent maintenance or component replacement. Quick-disconnect fittings incorporate valving that automatically seals both sides when disconnected, preventing contamination and fluid loss.

Common applications include mobile hydraulic equipment, where components may need to be swapped or serviced in the field, and in test stands where different Hydraulic valves are evaluated. While convenient, quick-disconnect fittings introduce additional pressure drop and potential leak points, making them less suitable for high-precision or extremely high-pressure applications.

Manifold Blocks

Manifold blocks represent a highly integrated approach to connecting Hydraulic valves. These precision-machined blocks contain internal passages that eliminate the need for many external hoses and fittings. Valves mount directly to the manifold, with their ports aligning with the internal passages.

This approach offers significant advantages in compactness, reduced pressure loss, and fewer potential leak points. Manifold systems for Hydraulic valves are commonly used in industrial machinery where space is limited and reliability is critical. The main disadvantage is the higher initial cost and reduced flexibility for system modifications compared to conventional piping methods.

Flange-Mounted Valves

Some large Hydraulic valves, particularly those handling high flow rates, utilize flange mounting where the valve body itself incorporates flanges for connection to piping. This creates a direct, low-restriction flow path through the valve and into the system piping.

Flange-mounted Hydraulic valves are commonly found in industrial process applications, water management systems, and large-scale manufacturing equipment. The flange connection ensures secure mounting and alignment, reducing vibration and stress on the valve body during operation. Proper flange alignment is critical to prevent leaks and ensure long-term reliability.

Integrated Subplates

Subplates provide a standardized interface between Hydraulic valves and the rest of the system. They feature standardized bolt patterns and port configurations that allow different valve manufacturers' products to be interchangeable.

Subplates simplify system design and maintenance by providing a consistent mounting interface. They often incorporate internal passages to reduce the need for external piping between Hydraulic valves and other components. This approach balances the flexibility of individual valves with the integration benefits of manifold systems, making them popular in industrial hydraulic applications.

Installation Considerations

Regardless of the connection method chosen, proper installation of Hydraulic valves is critical to system performance and reliability. Key considerations include:

Proper Alignment

Misalignment causes stress and potential leakage

Torque Specifications

Proper tightening prevents leaks and damage

Sealing Methods

Appropriate seals for pressure and fluid type

Accessibility

Valves should be accessible for maintenance

PRODUCT DIVERSITY

A wide variety of hydraulic valves

Specialized designs for every application and operating condition

Various types of hydraulic valves

50+

Valve Types Available

Meeting Every Hydraulic Need

The world of Hydraulic valves encompasses a wide range of specialized designs—such as hydraulic flow control valve—each engineered to perform specific functions within hydraulic systems. This diversity reflects the varied requirements of hydraulic applications across industries, from heavy construction equipment to precision manufacturing systems.

Each type of hydraulic valve is designed to address particular challenges, whether controlling flow direction, regulating pressure, modulating flow rate, or providing safety protection. Understanding the different types of Hydraulic valves and their applications is essential for designing effective hydraulic systems.

Modern hydraulic systems often combine multiple valve types working in harmony to achieve complex control objectives. This integration of different Hydraulic valves allows for sophisticated system behavior that can adapt to changing conditions and performance requirements.

Directional Control Valves

These fundamental Hydraulic valves control the path of fluid flow within a hydraulic system, determining which components receive pressurized fluid and when.

Common Types:

  • • 2-way, 3-way, 4-way valves
  • • Check valves and pilot-operated check valves
  • • Shuttle valves and directional spool valves
  • • Solenoid-operated directional valves
  • • Manual directional control valves

Typical Applications:

Controlling cylinder movement, directing flow to motors, reversing hydraulic motor rotation, and selecting different system functions.

Pressure Control Valves

These Hydraulic valves regulate system pressure, preventing overpressure conditions and maintaining pressure within desired limits for different system functions.

Common Types:

  • • Relief valves and safety valves
  • • Pressure reducing valves
  • • Sequence valves and counterbalance valves
  • • Unloading valves and pressure switches
  • • Load-sensing pressure control valves

Typical Applications:

System overpressure protection, maintaining consistent pressure in branches, sequencing operations, and preventing load drift in vertical applications.

Flow Control Valves

These Hydraulic valves regulate the rate of fluid flow within hydraulic circuits, controlling the speed of actuators and other hydraulic components.

Common Types:

  • • Globe valves and needle valves
  • • Flow restrictors and orifices
  • • Pressure-compensated flow control valves
  • • Flow dividers and combiners
  • • Proportional flow control valves

Typical Applications:

Controlling cylinder extension/retraction speed, regulating motor RPM, synchronizing multiple actuators, and metering flow to different system branches.

Proportional Valves

Advanced Hydraulic valves that provide infinitely variable control proportional to an electrical input signal, enabling precise control of flow or pressure.

Common Types:

  • • Proportional directional control valves
  • • Proportional pressure control valves
  • • Proportional flow control valves
  • • Servo valves for high-precision applications
  • • Electro-hydraulic proportional valves

Typical Applications:

Precision motion control, force control applications, robotics, material handling systems, and any application requiring variable speed or force control.

Cartridge Valves

Compact, high-performance Hydraulic valves designed to be inserted into manifold blocks, providing efficient flow control in a space-saving design.

Common Types:

  • • Cartridge relief and pressure valves
  • • Cartridge check valves and flow controls
  • • Directional control cartridge valves
  • • Logic element cartridge valves
  • • Sandwich-mounted cartridge valves

Typical Applications:

Mobile hydraulic equipment, industrial machinery, injection molding machines, and any application where compact design and high performance are required.

Specialty & Safety Valves

Specialized Hydraulic valves designed for specific safety functions or unique applications requiring specialized performance characteristics.

Common Types:

  • • Load-holding valves and counterbalance valves
  • • Anti-cavitation valves and bypass valves
  • • Hot oil shuttle valves and thermal relief valves
  • • Manifold-mounted safety valves
  • • Explosion-proof and hazardous environment valves

Typical Applications:

Safety-critical systems, vertical load holding, mobile equipment, high-temperature applications, and hazardous environments requiring specialized protection.

Selecting the Right Hydraulic Valve

Choosing the appropriate Hydraulic valves for a specific application requires careful consideration of several key factors:

  • System pressure and flow requirements
  • Required control precision and response time
  • Environmental conditions (temperature, contamination, etc.)
  • Installation space and connection requirements
  • Maintenance and serviceability considerations
  • Cost considerations and total lifecycle value
Get Expert Selection Assistance
Engineer selecting hydraulic valves
GET EXPERT ASSISTANCE

Need help with Hydraulic valves?

Our team of hydraulic experts is ready to help you select, install, and maintain the perfect valves for your application. Whether you're designing a new system or upgrading an existing one, we have the knowledge and experience to ensure success.

Contact Information

Address

123 Hydraulic Avenue, Engineering Park
Mechanicsville, NY 12345

Phone

+1 (555) 123-4567

Email

experts@hydraulicvalves.com

Hours

Monday - Friday: 8:00 AM - 6:00 PM
Saturday: 9:00 AM - 12:00 PM

Our Expertise

  • Valve selection and system design
  • Troubleshooting hydraulic systems
  • Performance optimization
  • Maintenance and repair guidance
  • Custom solution development

Follow Us
